Safety Interlock And High Efficiency Pid Control Pvb Or Sgp Laminated Glass Autoclave
Efficient, Durable, Premium Quality
● Flat and curved laminatedglass
● Automatic control oftemperature and pressureprogram
● Safety interlock
Product Display

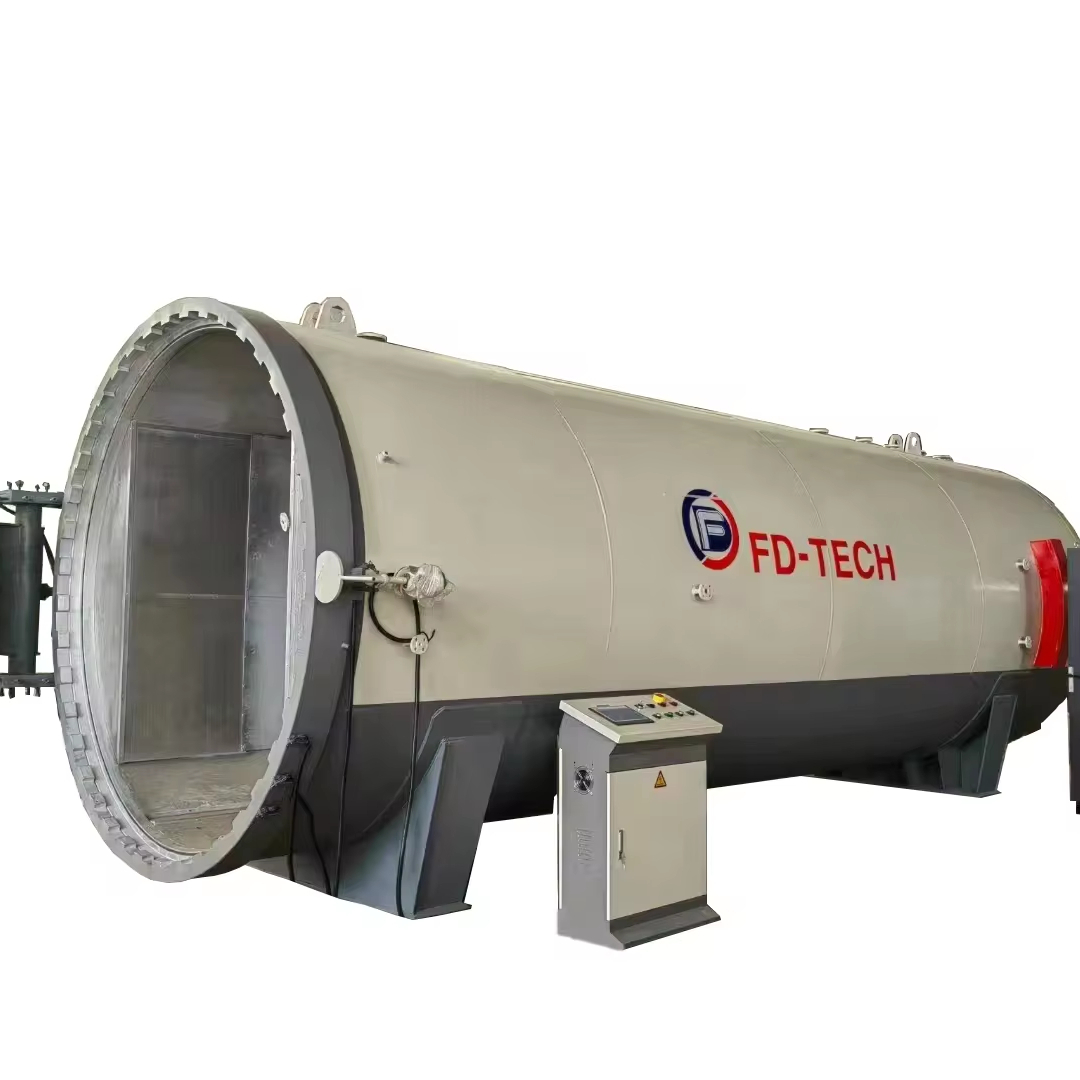

Laminated glass autoclave adopts double convection heating pressure vessel with up and down circulation and front and back circulation. Laminated glass autoclave can realize precise control of temperature and pressure. Temperature and pressure can be completely changed according to the design curve.
Enhanced PVB/SGP Glass Laminating Furnace
Laminated Glass Autoclave |
|||||||
| Model |
Inner diameter (mm) |
Glass length (mm) |
Max.glass size (mm) |
Circulating fan power(kw) | Orbital distance(mm) | Operation press(Mpa) | Operating temp(℃) |
| DN2100*6000 | 2100 | 6000 | 1700*6000 | 15~30 | 700 | 1.3 | 120~135 |
| DN2600*6000 | 2600 | 6000 | 2200*6000 | 18.5~37 | 800 | 1.3 | 120~135 |
| DN2860*6000 | 2860 | 6000 | 2440*6000 | 18.5~37 | 850 | 1.3 | 120~135 |
| DN3000*6000 | 3000 | 6000 | 2600*6000 | 22~45 | 1000 | 1.3 | 120~135 |
| DN3200*8000 | 3200 | 8000 | 2800*8000 | 22~45 | 1000 | 1.3 | 120~135 |
| DN3600*8000 | 3600 | 8000 | 3200*8000 | 37~75 | 1100 | 1.3 | 120~135 |
| DN3800*8000 | 3800 | 8000 | 3400*8000 | 37~75 | 1100 | 1.3 | 120~135 |
| The equipment can be customized according to customer requirements. | |||||||
Equipment can be customized as required
The glass laminating furnace features a pressure vessel with double convection heating for precise temperature and pressure control, allowing for changes according to design curves. The machine comes in various sizes, with circulating fan power ranging from 15 to 37 kW, operating pressure from 1.3 to 1.5 Mpa, and temperature up to 135°C.
This laminated glass autoclave equipment can be customized according to customer requirements, ensuring high-quality and reliable services for domestic and foreign customers.
◎ Precise Temperature Control
◎ Customizable Options
◎ High-Pressure Vessel Introduction
